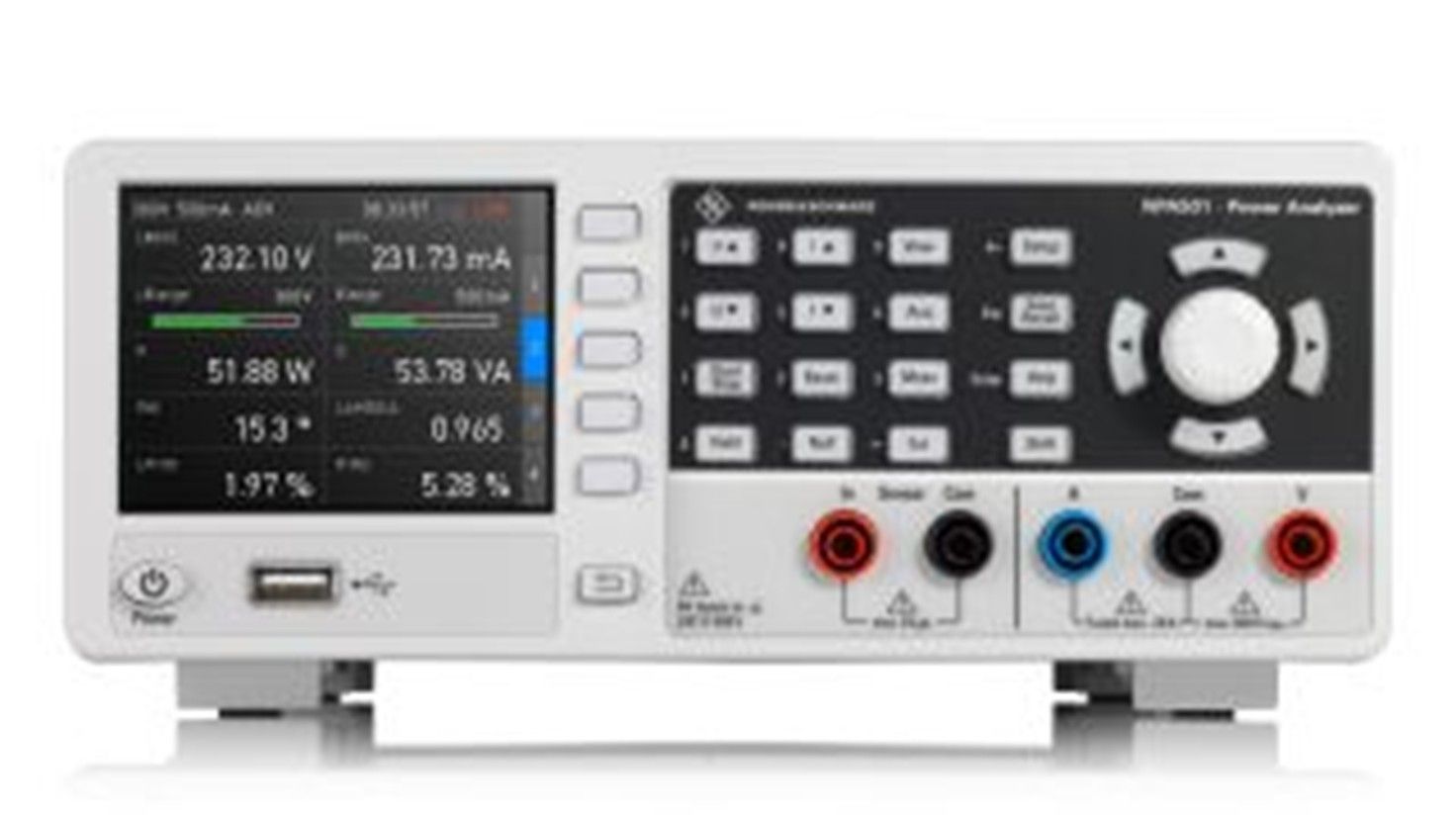

Power Analyzer 1 phase
Bandwidth DC - 100 kHz

Features


  • Bandwidth DC - 100 kHz


  • Basic accuracy 0,05 %


  • Precise measurement in wideband power


  • Measuring inputs for current clamps and Shunts


  • Graphical Display with soft keys


  • Harmonic Analysis up to the 50 (NPA 501/701)


  • Harmonic Analyss according IEC61000-3-2 (NPA 701)


  • Standby-Measurement according IEC62301 and EN50564 (NPA 701)



  • Analog and digital Inputs/outputs (NPA 501/701)
Model Urms, Irms, P, PF, S, Q, THD, Wh Peak values Harmonic, Wave, Trend Inrush, Sensor-Input Din/Ain CE-Harm, IEC62301, EN61000-3-2 IEEE488
NPA101 x
NPA501 x x x
NPA501-G x x x x
NPA701 x x x x
NPA701-G x x x x x
